As a world-leading supplier of composite insulators, we possess full supply chain production capabilities and rigorous quality control. This aluminum line clamp is specifically designed and manufactured for line post insulators, fully complying with the requirements of American standards ANSI C29.7 and ANSI C29.18.

What is an Aluminum Line Clamp for Line Post Insulators?

In terms of manufacturing technology, the aluminum line clamp for line post insulators is classified as a high-pressure aluminum die casting, which represents a high-performance and highly sophisticated process product in the manufacturing industry.

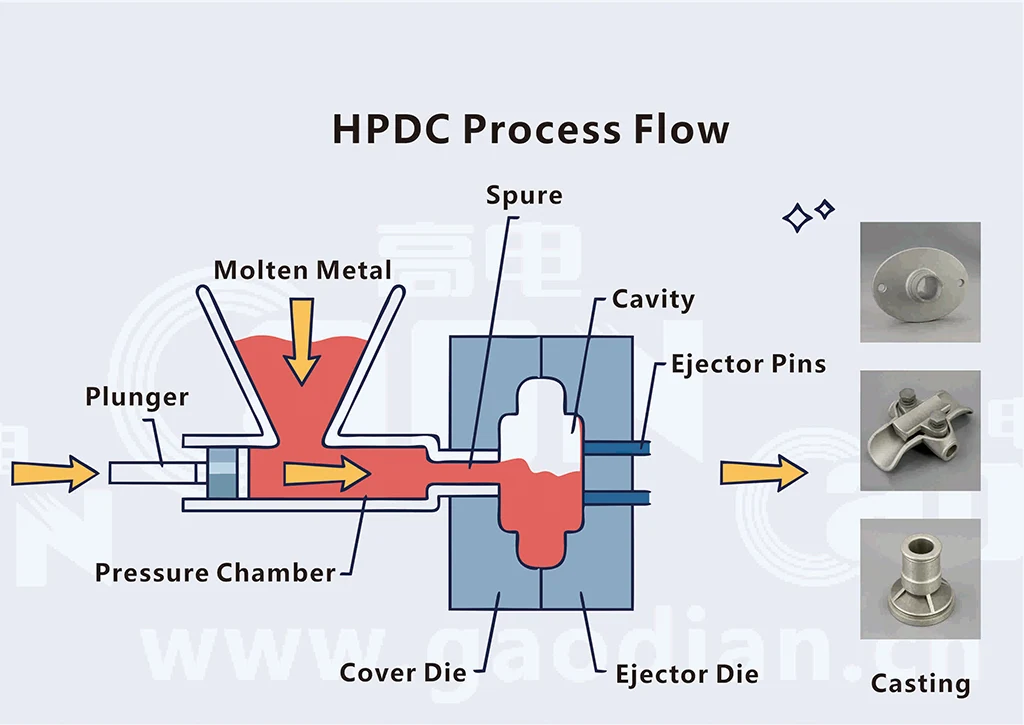

1. High-Pressure Die Casting (HPDC) Process

High-pressure die casting involves injecting molten aluminum alloy liquid (usually at temperatures above 650°C) into a precision metal mold cavity at high velocity under extreme pressure (ranging from several megapascals to over a hundred megapascals) in an ultra-short timeframe, allowing it to rapidly solidify and form under pressure.

2. Key Advantages of High-Pressure Die-Cast Aluminum

• Excellent Lightweighting & High Specific Strength: Aluminum alloy has a low density, but the structure becomes exceptionally dense after high-pressure die casting, yielding an outstanding "specific strength". When applied to transmission lines, it significantly reduces the overall load-bearing stress on towers, conductors, and insulators, thereby lowering structural construction costs.

• Outstanding Mechanical & Anti-Fatigue Performance: The HPDC process solidifies the molten aluminum under extreme pressure, effectively eliminating internal porosity. The resulting formed line clamps offer high tensile strength and hardness, delivering robust and long-lasting mechanical gripping force. They resist metal fatigue and creep deformation even under harsh outdoor conditions like long-term wind vibration and heavy snow/ice loads.

• Ultimate Dimensional Precision & Complex Monolithic Structure: High-pressure die casting forces the molten aluminum into the mold within milliseconds. Achieving near-net-shape molding with high surface finish and minimal dimensional tolerance, the product requires virtually no post-machining before direct assembly.

• Superb Corrosion Resistance & Low Electromagnetic Loss: When exposed to air, aluminum alloy spontaneously forms a dense protective oxide film on its surface, offering exceptional weatherability in outdoor environments like rain, industrial atmospheres, or salt spray. Furthermore, as a non-magnetic metal, aluminum eliminates hysteresis and eddy current losses in high-voltage AC grids, effectively reducing power losses along transmission lines.

Key Dimensions & Conductor Compatibility

This line clamp is compatible with ACSR (Aluminum Conductor Steel Reinforced) with a diameter of 14mm to 32mm.

Our Core Competitiveness

Utilizing advanced high-pressure die-casting machines, we simultaneously produce high-pressure copper and aluminum castings. Beyond aluminum line clamps, we manufacture a comprehensive range of high-voltage aluminum fittings for insulators, as well as flanges for composite wall bushings.

Click the links below to take a closer look at our manufacturing capabilities and production facility via our 360° digital panoramic workshops.

Die Casting Workshop	Machining Workshop

Due to the outstanding properties of high-pressure die-cast aluminum, virtually no post-machining is required; the parts can proceed directly to the assembly stage after a simple grinding of the gates and flash.

Primary Applications

Just as its name implies, this product is engineered exclusively for line post insulators. This aluminum line clamp empowers line post insulators with the capability to securely and reliably grip ACSR conductors!

While line post insulators equipped with aluminum line clamps are less common in China and Europe, they are highly popular throughout the Americas, Oceania, and Africa. This is primarily a reflection of local engineering practices and standard setups, rather than a matter of technical superiority.
